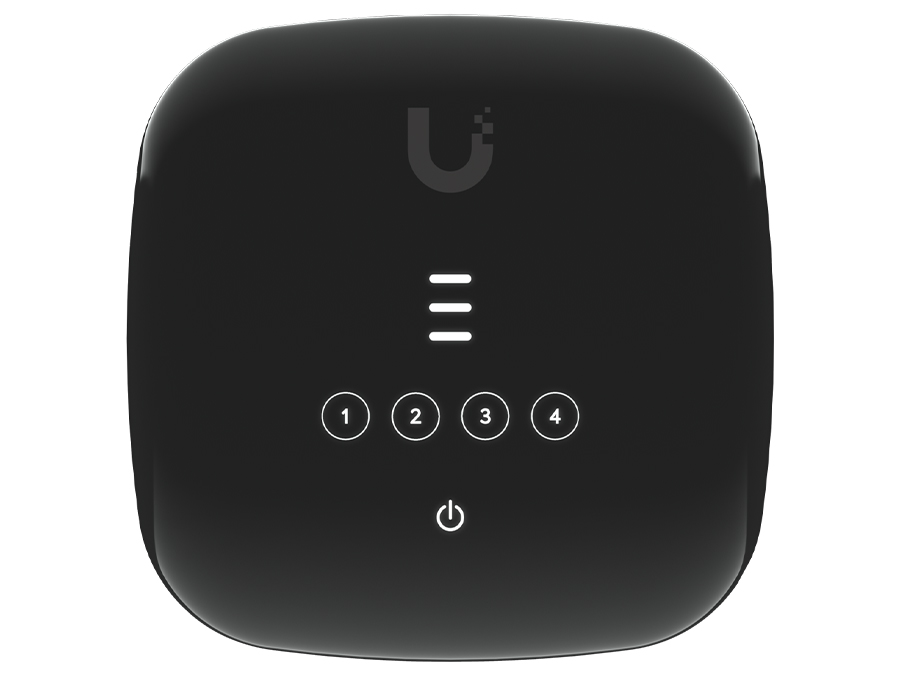

Ubiquiti’s UF-WIFI is a robust, high-performance GPON CPE. It features an LED display, 4x Gigabit Ethernet ports, 1x SC APC port and 2.4GHz WiFi connectivity. It provides powerful Layer 2/3 management features. The unit can be powered using 24V Passive PoE on Port 1, or by a 24V power supply.
It can be managed via the UISP network management platform.
Specifications
• Supplier Code: UF-WIFI
• Antenna Gain: 1dBi
• Beam-width: 360°
• Data Rate: 300Mbps
• Ethernet Ports: 4x 10/100/1000
• Hardware Button: Reset
• Max. Power Consumption: 7W
• Mounting: Desktop
• Operating System: UFiber
• Operating Temperature: -10°C to 45°C
• PoE Input: 24V Passive PoE
• PoE Output: None
• Power Input: 24V 0.5A Power Supply (Included)
• Serial Interface: None
• SIM Slots: None
• Supported Voltage Range: 20V-28V
• USB Ports: None
• Other: 1x 2.5/1.25Gbps SC APC GPON
• Dimensions: 126.34 x 126.09 x 31.65mm
• Weight: 190g
