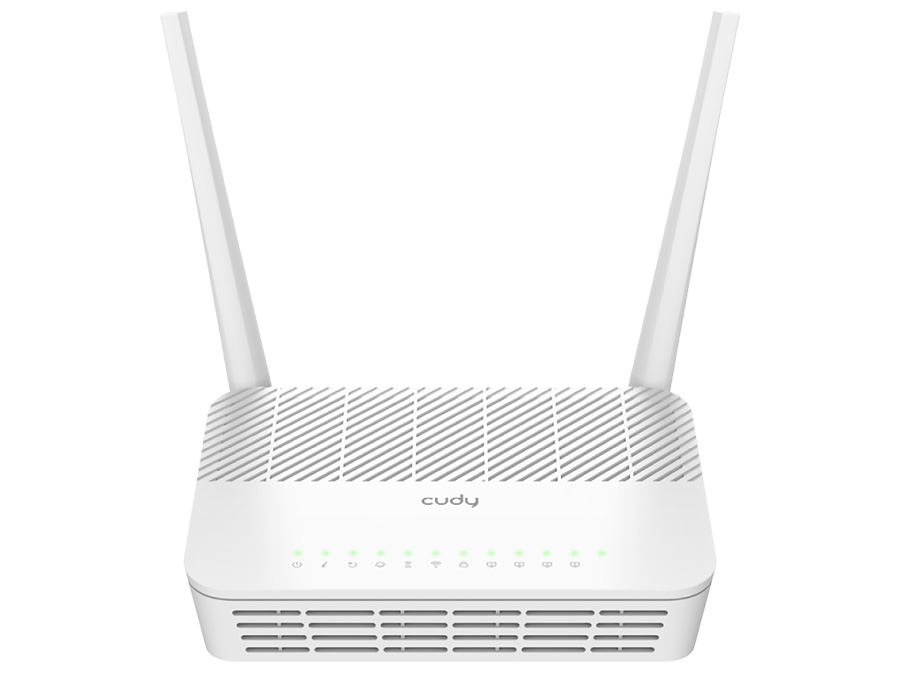

Cudy’s CD-GP1200 is an xPON WiFi 5 router featuring 4-Stream dual-band WiFi 5, 1x SC/APC Slot, 4x Gigabit Ethernet Ports, GPON/EPON dual modes, CWMP, OMCI, 4-queue QoS, and EasyMesh.
Specifications
• Supplier Code: GP1200
• Antenna Gain: 2x 5dBi
• Beam-width: 360°
• Data Rate: 2.4GHz: 300Mbps; 5.8GHz: 867Mbps; GPON: 2.488Gbps Downstream / 1.244Gbps Upstream; EPON: 1.25 Gbps Downstream / Upstream
• Ethernet Ports: 4x 10/100/1000
• Hardware Button: Power, Reset, WPS, Wi-Fi On/Off
• Max. Power Consumption: 9.6W
• Max Transmission Distance: 20km
• Mounting: Desktop or Wall-mount
• Operating System: Cudy
• Operating Temperature: 0°C to 40°C
• PoE Input: None
• PoE Output: None
• Power Input: 12V 1A Power Supply (Included)
• Serial Interface: None
• SIM Slots: None
• Supported Voltage Range: 12V 1A
• USB Ports: None
• Wavelength: TX: 1310nm ; RX: 1490nm
• Dimensions: 173 × 123.8 × 33mm
• Weight: 288g
