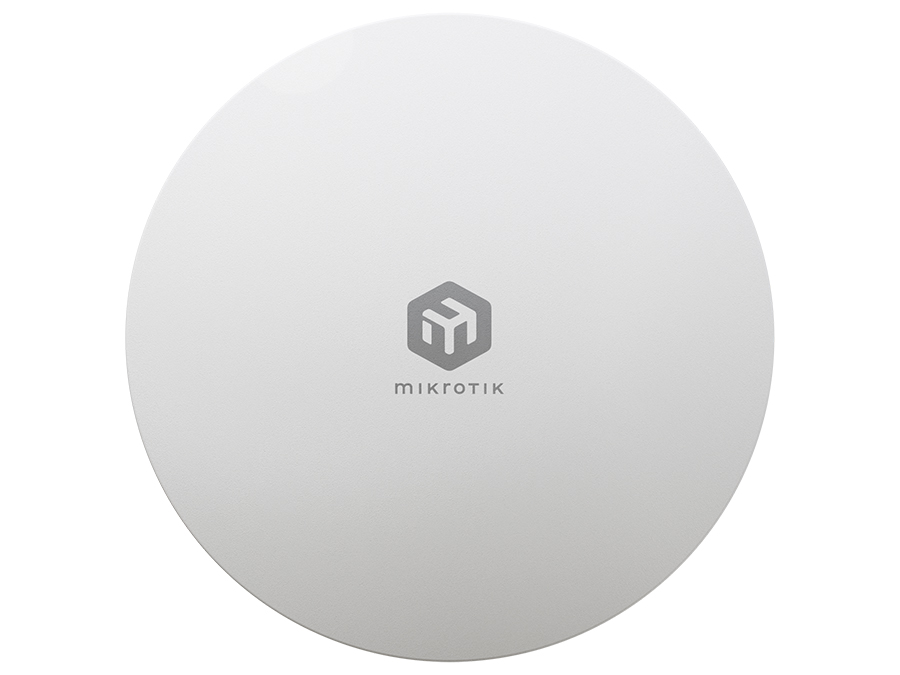

MikroTik’s RB-ATL5G features a 5G LTE modem, 1x Micro SIM Slot, built-in eSIM support, 1x Gigabit Ethernet port with PoE-in and 4×4 MIMO support. The unit also supports a wide frequency band with 4x high-gain middle-band antennas and 4 low-band antennas, including Band 28 support for both long-range LTE and 5G.
Specifications
• Antenna Gain: 16dBi
• Data Rate: 4.2Gbps Downlink, 900Mbps Uplink
• Ethernet Ports: 1x 10/100/1000
• Hardware Button: Reset
• Max. Power Consumption: 10W
• Mounting: Pole-Mount
• Operating System: RouterOS v7 (Level 3 License)
• Operating Temperature: -40°C to 70°C
• PoE Input: 802.3af/at
• PoE Output: None
• Power Input: 24V 0.8A Power Supply (Included)
• Serial Interface: None
• SIM Slots: 1x Micro SIM ; Built-in eSIM support
• Supported Voltage Range: 12V-56V
• USB Ports: None
• Other: 1 Mini PCIe
• Dimensions: Ø 311 x 311 x 179 mm
