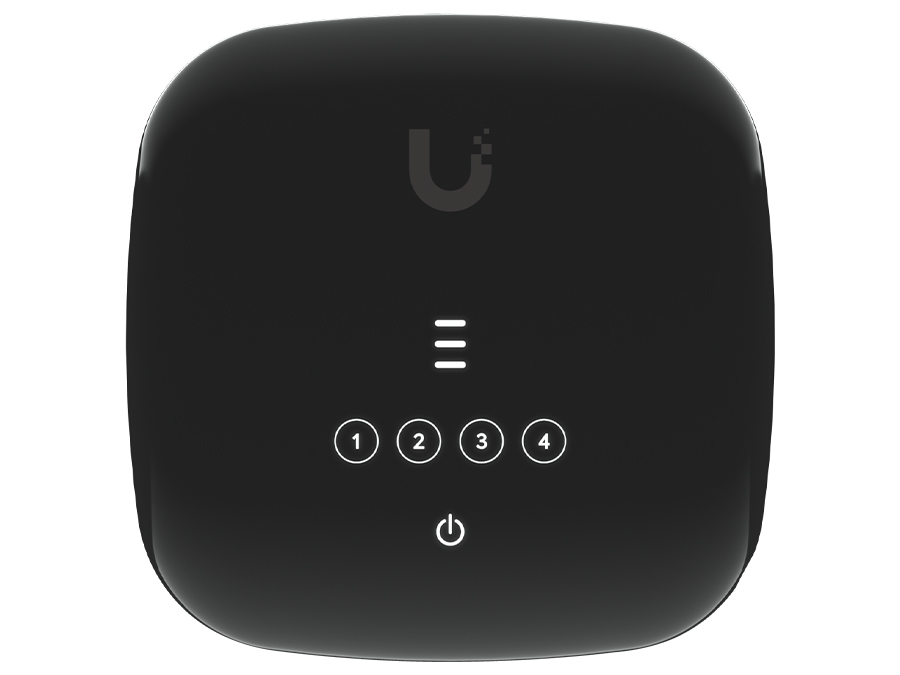

Ubiquiti’s UF-WIFI6 is a dual band, WiFi 6 (802.11ax) GPON CPE. It features an LED display, 4x Gigabit Ethernet Ports, 1xSC APC GPON WAN port and provides powerful Layer 2/3 management features. The unit is capable of distances of up to 20km with speeds of up to 2.4Gbps downstream and 1.2Gbps upstream. The UF-WIFI6 can be powered by either the included 5V 3A USB-C or 24V Passive PoE.
It can be managed via the UISP network management platform.
Specifications
• SKU: UF-WIFI6
• Brand: Ubiquiti
• Supplier Code: UF-WIFI6
• Antenna Gain: 2.4GHz: 1dBi ; 5.8GHz: 3dBi
• Beam-width: 360°
• Data Rate: 2.4GHz: 300Mbps ; 5.8GHz: 1.2Gbps
• Ethernet Ports: 4x 10/100/1000
• Hardware Button: Reset
• Max. Power Consumption: 11W
• Mounting: Desktop
• Operating System: UFiber
• Operating Temperature: -15°C to 45°C
• PoE Input: 24V Passive PoE
• PoE Output: None
• Power Input: 5V 3A USB-C (Included)
• Serial Interface: None
• SIM Slots: None
• Supported Voltage Range: 10-30V Passive PoE ; 5VDC USB-C
• USB Ports: None
• Other: 1x 2.5/1.25Gbps SC APC GPON
• Dimensions: 140.8 x 141.5 x 31.65 mm
• Weight: 415g
