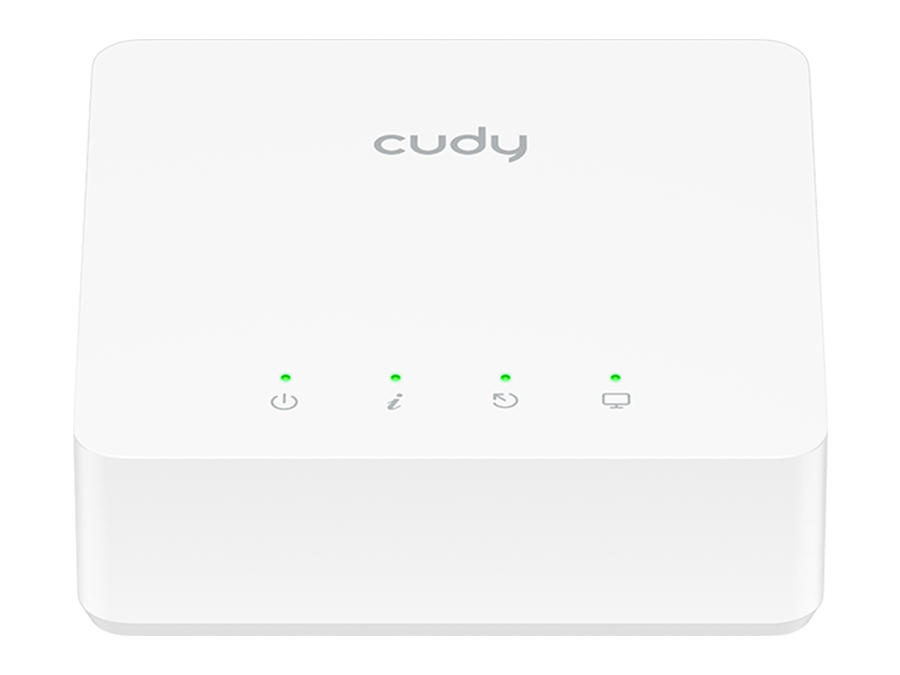

Cudy’s CD-GP10 is a gigabit, dual-mode GPON/EPON optical network terminal ideal for FTTH solutions up to 20km. The unit features OAM, OMCI, and TR069 remote management as well as a throughput of up to 2.5Gbps on GPON and 1.25Gbps on EPON.
Specifications
• Supplier Code: GP10
• Data Rate: GPON: 2.488Gbps Downstream / 1.244Gbps Upstream EPON: 1.25Gbps Downstream / Upstream
• Ethernet Ports: 1x 10/100/1000
• Hardware Button: Reset
• Max Transmission Distance: 20km
• Mounting: Desktop or Wall-mount
• Operating System: Cudy
• Operating Temperature: 0°C to 40°C
• PoE Input: None
• PoE Output: None
• Power Input: 12V 1A Power Supply (Included)
• Serial Interface: None
• SIM Slots: None
• Supported Voltage Range: 12V 1A
• USB Ports: None
• Wavelength: TX: 1310nm; RX: 1490nm
• Dimensions: 82×82×27 mm
• Weight: 288g
