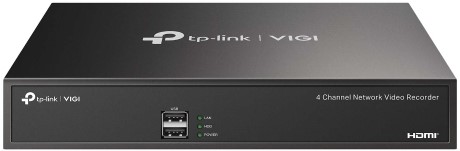

TP Link 4ch NVR 4-Channel Live View and 4K HDMI Video Output, 2-ch @ 8MP/ 4-ch @ 4MP Decoding Capability, 4-Channel Synchronous Playback, 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth, 1 SATA Interface (up to 10 TB) *, H.265+ Compression Technology, HDMI and VGA Simultaneous Output, Remote Monitoring, Retail Box, 1 year warranty
Product Overview
The TP Link 4ch NVR offers powerful recording for your security cameras, supporting 4K HDMI output and up to 8MP resolution for detailed footage. With remote monitoring and flexible storage options, it’s a scalable solution for home or business security.
Specifications
•Product code: VIGI-NVR1004H
•Description: TP-Link 4ch NVR 4-Channel Live View and 4K HDMI Video Output
•IP Video Input 4-Channel
•Incoming Bandwidth 80 Mbps
•Outgoing Bandwidth 60 Mbps
•HDMI Output Resolution 1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
•VGA Output Resolution 1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
•Video Output Mode HDMI/VGA Simultaneous Output
•Multi-View Display 1/4
•Audio Compression G.711A/G.711U/G.726
•Decoding Format H.265+/H.265/ H.264+/H.264
•DCIF/2CIF/CIF/QCIF
•Synchronous Playback 4-Channel†
•25fps: 2-ch @ 8MP, 4-ch @ 4MP
•30fps: 4-ch @ 4MP, 3-ch @ 5MP
•Manual Recording
•Scheduling Recording
•Motion Detection Recording
•Playback Mode
•Instant Playback
•Regular Playback
•Tag Playback
•Event Playback
•Backup Mode
•Regular Backup
•Protocol UPnP (Plug and Play), NTP (Network Timing)
•Mobile Phone Access Android, iOS
•Web Browser Chrome (57+), Firefox (52+), Edge (91+)
•Interoperability ONVIF, CGI
•Network Interface 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
•USB Interface 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
•Audio Interface 1, Audio In; 1, Audio Out
•Standard 802.3at/af Compliant
