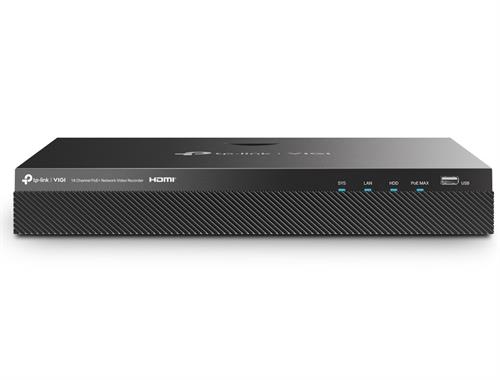

TP-Link VIGI 16 Channel PoE Plus Network Video Recorder – 16 Channel IP Video Input, 80Mbps incoming bandwidth, 60Mbps Outgoing Bandwidth, HDMI/VGA Simultaneous Output, Manual Recording, Scheduling Recording, Motion Detection Recording, Playback mode, UPnP (Plug and Play), NTP (Network Timing), Android, iOS, Web Browser Chrome (57+), Firefox (52+), Edge (91+), 2 SATA Interfaces, Up to 16 TB Capacity for Each HDD, Retail Box, 1 year warranty
Product Overview
The TP-Link VIGI 16 Channel PoE Plus Network Video Recorder supports up to 16 IP camera inputs with simultaneous HDMI and VGA output in resolutions up to 4K. It features H.265+ video compression, multi-view display options, and flexible recording modes including motion detection and scheduled recording. With PoE support, extensive alarm options, and mobile app access, it provides comprehensive, scalable security management for professional surveillance setups.
Specifications
•Product code: VIGI-NVR2016H-16P
•Description: TP-Link VIGI NVR2016H-16P VIGI 16 Channel Network Video Recorder
•IP Video Input 16-Channel
•Incoming Bandwidth 80 Mbps
•Outgoing Bandwidth 60 Mbps
•Multi-View Display 1/4/6/8/9/16
•Audio Compression G.711A/G.711U/G.726
•Video Compression H.265+/H.265/ H.264+/H.264
•Synchronous Playback 16-Channel
•25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
•30fps: 4-ch @ 3MP, 2-ch @ 5MP
•Interoperability ONVIF, CGI
•SATA 2 SATA Interfaces
•Capacity Up to 10 TB Capacity for Each HDD
•Standard 802.3at/af Compliant
•Storage Temperature -40–70 °C
•Power Adapter
•Power Cables
•HDD Power Cables
•HDD Data Cables
•Mounting Accessories
•Quick Installation Guide
•Working Temperature NVR: -10–55 °C
•Power Adapter: 0–40 °C
•Dimensions (W X D X H) 330 × 285 × 45 mm
•Net Weight 1.9 Kg
•Gross Weight 3.2 Kg
•Power Supply 53.5V DC/2.43A
