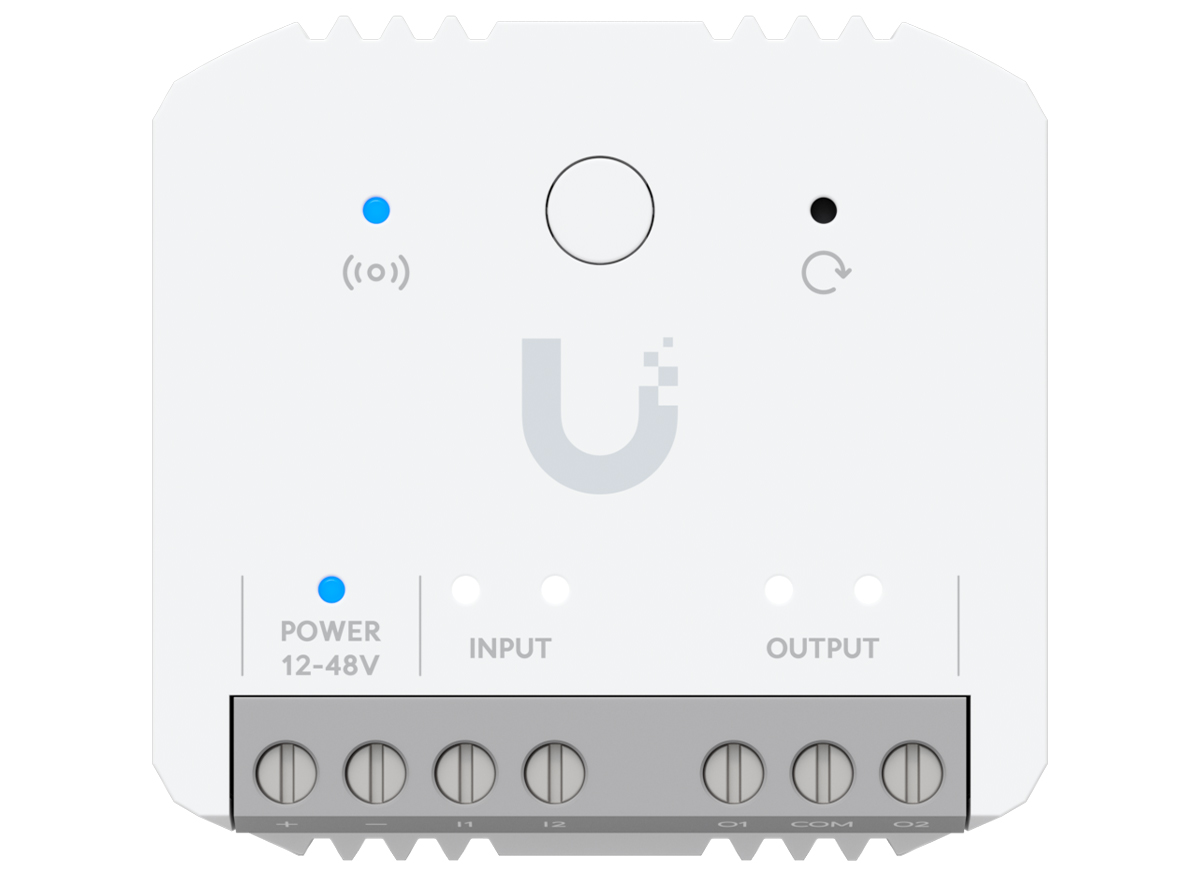

Ubiquiti’s USL-RELAY is a compact SuperLink relay designed with I/O interfaces for seamless integration with third-party sensors and signalling devices. It features 2x configurable signal inputs for integration with external sensors and 2x relay outputs for controlling external systems. Compatible with (12–240 V AC) and (12–48 V DC) dry contact inputs.
Note: This device requires a USL-GATEWAY.
Specifications
• SKU: USL-RELAY
• Brand: Ubiquiti
• Supplier Code: USL-Relay
• Connectivity: SuperLink (Proprietary)
• Hardware Buttons: Factory reset & Test
• Max. Range: 2km
• Mounting: Adhesive, wall and DIN rail mount
• Operating Temperature: 0°C to 40°C
• Power Input: 12V, 24V, 48V DC
• Terminal Blocks Output: O1/COM/O2, Dry contact only (12-48V DC, 12-240V AC), 10A/port, UL total max: 12A, IEC total max: 16A
• Terminal Blocks Input: I1/I2, Dry contact only, Open/Short (GND), Integrated 5V TVS protection
• Terminal Blocks Power: VDD/GND, 12–48V DC, max. 48V, Integrated over-temperature protection (OTP) at 85°C (185°F)
• Dimensions: 50 x 47.6 x 28 mm
• Weight: 100g
