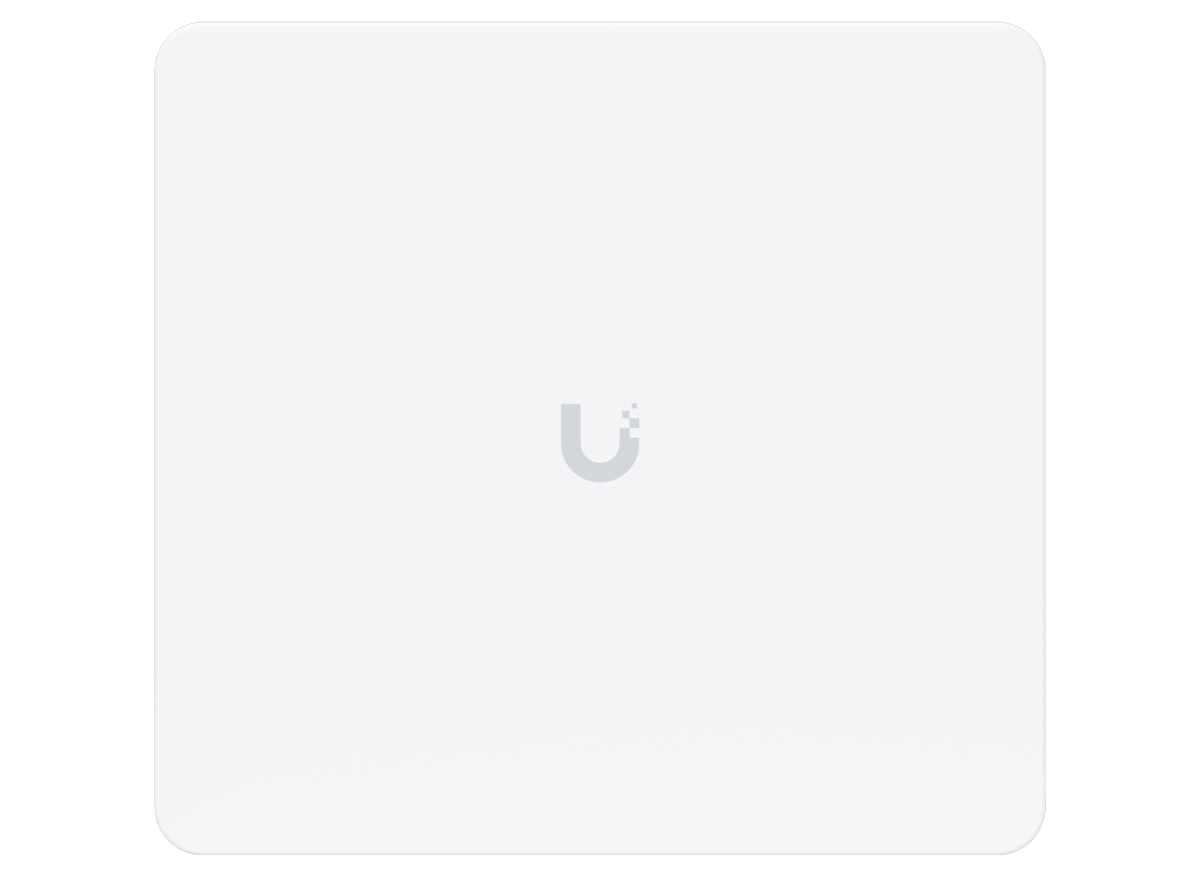

Ubiquiti’s UP-ALARMHUB is an indoor alarm control hub with 32 inputs for hardwired intrusion sensors. It is powered by a PoE++/+++ (802.3bt 60W/90W) input, has optional battery backup and 2x wet/dry output relays.
It can be configured and managed using the UniFi Protect Application.
Specifications
• Supplier Code: UP-AlarmHub
• Input Terminals: 32x Inputs for alarm sensor, 1x Emergency
• Ethernet Ports: 2x 10/100
• Hardware Button: 1x Factory reset, 2x Dry/Wet switch
• Max. Power Consumption: 90W
• Mounting: Wall Mount
• Output Relay: 2x Wet/Dry (Wet: 12V DC, 1A, Dry: 30V DC, 1A)
• Operating Temperature: -10°C to 40°C
• PoE Input: 802.3bt (90W)
• Power Input: 802.3bt (90W) PoE or 12V SLA Battery
• PoE Output: 802.3af/at
• Dimensions: 379 x 355 x 105 mm
• Weight: 8.3kg
