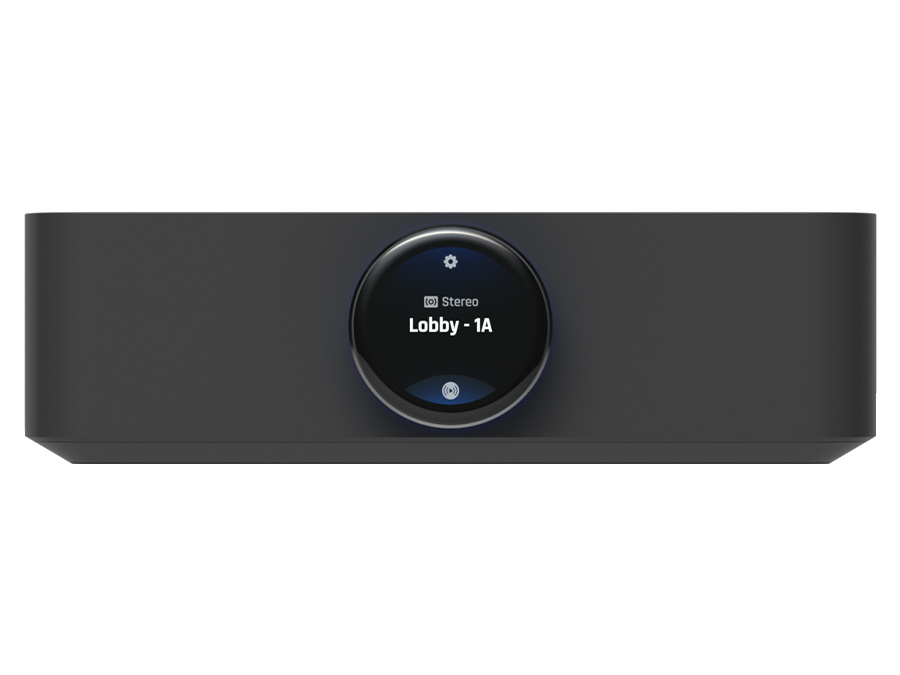

Ubiquiti’s UPL-AMP-B is a premium WiFi 5 speaker amplifier with 2x Gigabit Ethernet Ports designed for high-fidelity multi-zone audio streaming and immersive spatial sound experiences. It features low-latency wireless audio streaming with Apple AirPlay 2 and Spotify, 130W per channel at 8 ohms, 2x speaker terminal outputs with 2x custom-designed banana plugs included.
Also included is 1x RCA analog subwoofer output, 2x RCA analog inputs for left and right channels, 1x HDMI eARC input with immersive spatial sound powered by Dolby Atmos as well as a 1.43″ rotary knob with touchscreen.
This unit can be configured and managed via the UniFi Play mobile app.
Specifications
• SKU: UPL-AMP-B
• Brand: Ubiquiti
• Supplier Code: UPL-Amp-B
• Amplifier class: Class D
• Audio input: 1x HDMI eARC input, 2x RCA analog inputs L/R
• Audio output: 1x RCA analog subwoofer output, 2x Speaker terminal outputs with 2x banana plugs
• Data Rate: 2.4GHz: 300Mbps ; 5.8GHz: 867Mbps
• Ethernet Ports: 2x 10/100/1000
• Grouping: Up to 32 PowerAmps
• Max. Power Consumption: 17W
• Mounting: Desktop
• Operating System: UniFi Play
• Operating Temperature: -5 to 40° C
• Output: Mono / Stereo sound
• Per channel power (Continuous power): 130 W, 8 Ω, 1 kHz, < 0.05% THD+N, EIA (CEA-490-A) 260 W, 4 Ω, 1 kHz, < 0.09% THD+N, EIA (CEA-490-A)
• Streaming: AirPlay2, Spotify Connect, Soundtrack Your Brand
• Dimensions: 217 x 236.8 x 63.7 mm
• Weight: 2.4kg
In the box: 2x custom-designed banana plugs
