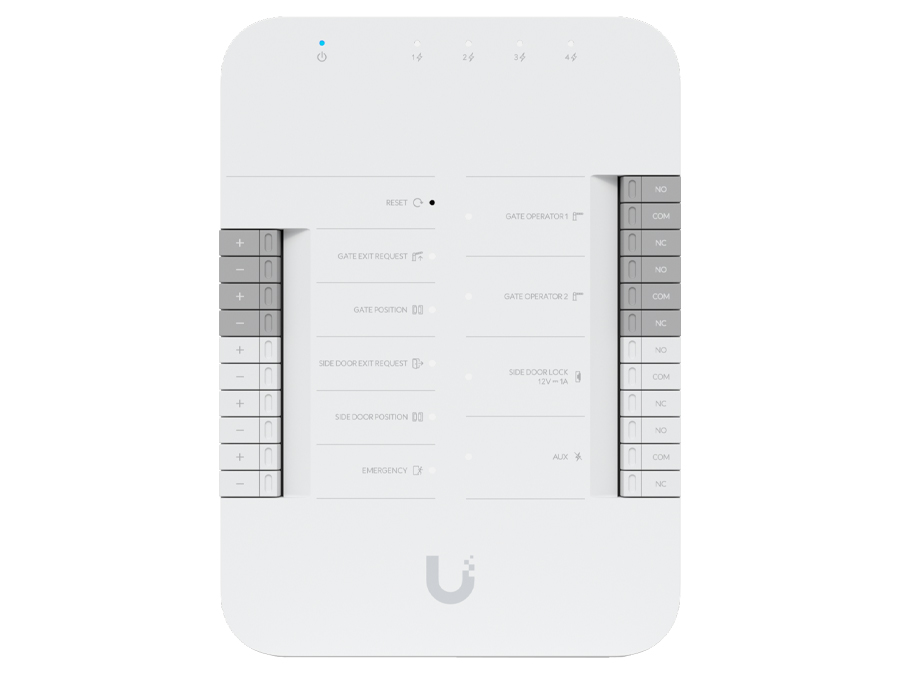

Ubiquiti’s UA-HUB-GATE is a compact, indoor, access control hub which provides access control for a single gate. It features 1x 802.3at PoE input and 4x Gigabit Ethernet Ports with PoE out. The hub also has 5x input terminals (1x Gate exit request, 1x Gate position, 1x Side door exit request, 1x Side door position 1x Emergency), all of which can be unlocked using an NFC card, UniFi Identity Endpoint Mobile App, or Licence Plate Recognition if paired with a UniFi Protect AI Camera.
Specifications
• Button: Reset; Dry/Wet Switch
• Bluetooth: None
• Input Terminals: 1x Gate Exit Request ; 1x Gate Position, 1x Side Door Exit, 1x Side Door Position, 1x Emergency
• Ethernet Ports: 5x 10/100/1000
• Dry Output Relay: 2x Operator: rated 30V DC, up to 1A , 1x Aux: rated 30V DC, up to 1A
• Wet Output Relay: Side door lock: 12V DC, up to 1A
• Mounting: DIN-rail (Included)
• Operating Temperature: -30 to 60° C
• Max Power Consumption: 22W
• Power Input: 802.3at (PoE++)(Not Included)
• PoE Output: 802.3af
• Dimensions: 175 x 126 x 26 mm
• Weight: 460g
