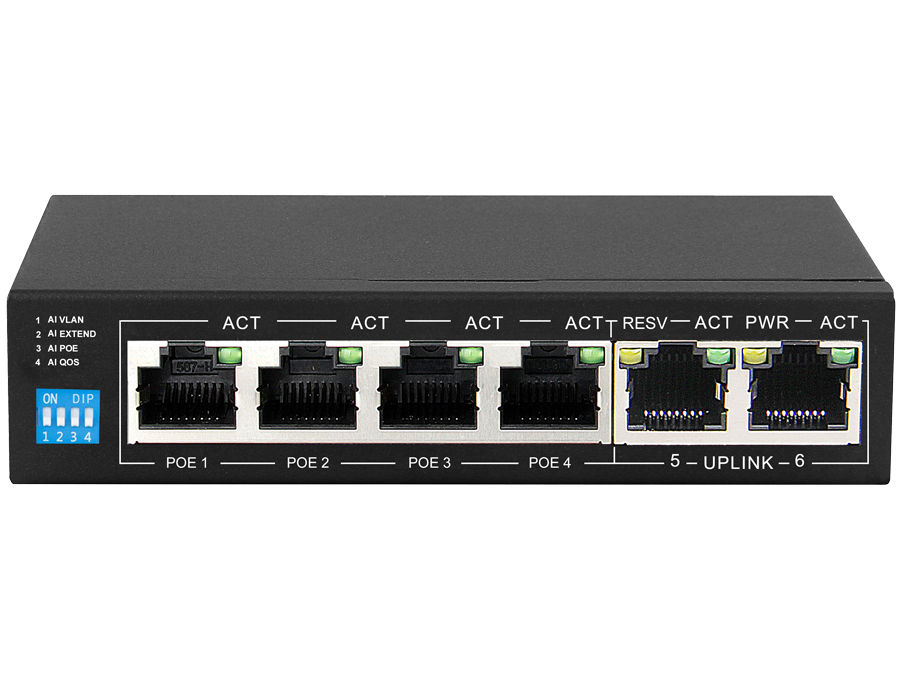

Scoops SPS-4F2F is an unmanaged 4 port Fast Ethernet PoE switch with 2x Fast Ethernet uplink ports.
Each of the PoE ports is IEE803.3af/at compliant which enables them to auto-detect and identify whether the connected device is compatible and requires power.
Total maximum PoE budget is 60W and the maximum budget per port is 36W.
The SPS-4F2F supports 4 working modes:
VLAN (Port Isolation): Enables Port Isolation on port 1-4.
Extend Mode: Transmission distance of ports 1-4 can be increased to up to 250 metres at 10Mbps using Cat6 solid copper cable.
PoE: Automatically restarts a PoE powered device if no data passes through the port for a set time.
QOS: Priorities network bandwidth based on network usage history & analytics.
Specifications
• SKU: SPS-4F2F
• Brand: Scoop
• Ethernet Ports: 6x 10/100
• Hardware Button: VLAN; Extender; PoE; QOS
• Max. Power Consumption: 3W
• Mounting: Desktop
• Operating System: None
• Operating Temperature: 0°C to 40°C
• PoE Input: None
• PoE Output: 802.3af/at PoE on Ports 1~4
• Power Input: 52V 1.15A Power Supply (Included)
• Serial Interface: None
• SFP Ports: None
• Supported Voltage Range: 52V
• Dimensions: 125 x 75 x 27mm
