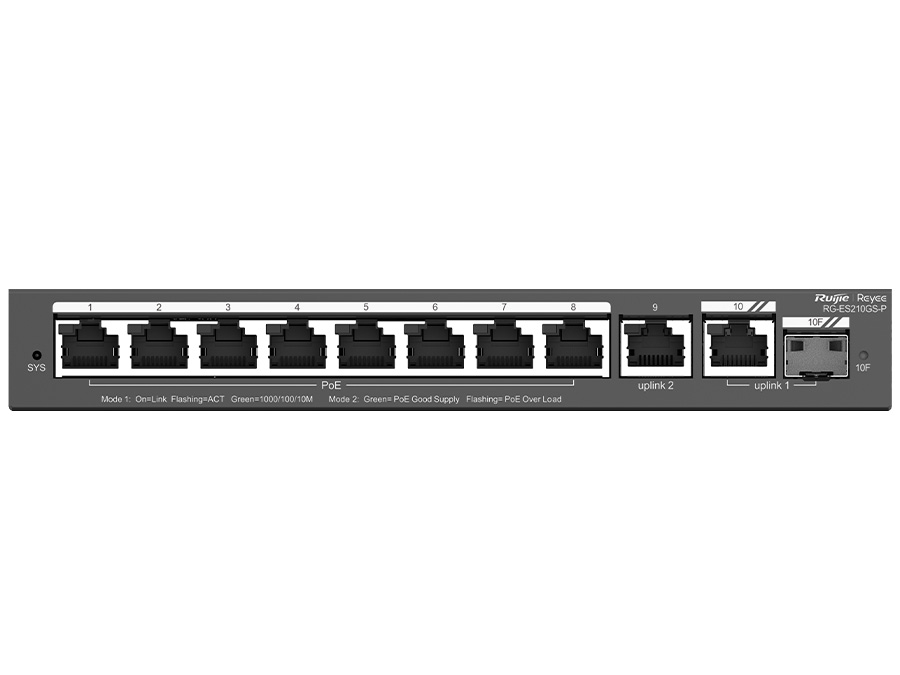

Reyee’s RG-ES210GSP is a 10 port Layer 2 Gigabit smart switch with 8x 802.3af/at PoE ports, 2x Gigabit Ethernet uplink ports and 1x SFP Combination Port. The switch offers a 120W PoE budget and up to 30W per PoE port. It supports Ruijie’s smart networking feature, which with Ruijie’s free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.
Note: Does not support Passive DAC’s, 1GB copper SFP modules, or SFP GPON modules. It is compatible with our SFP-AOC5.
Specifications
• Ethernet Ports: 10x 10/100/1000
• Hardware Button: None
• Max. Power Consumption: 10W
• Mounting: Desktop or Wall Mount
• Operating System: None
• Operating temperature: 0°C to 40°C
• PoE Input: None
• PoE Output: 802.3af/at on Ports 1 to 8
• Power Input: 54V 2.4A Power Supply (Included)
• Serial Interface: None
• SFP Ports: 1x SFP Combo Port
• Supported Voltage Range: 54V
• Dimensions: 202 x 108 x 28mm
• Weight: 539g
