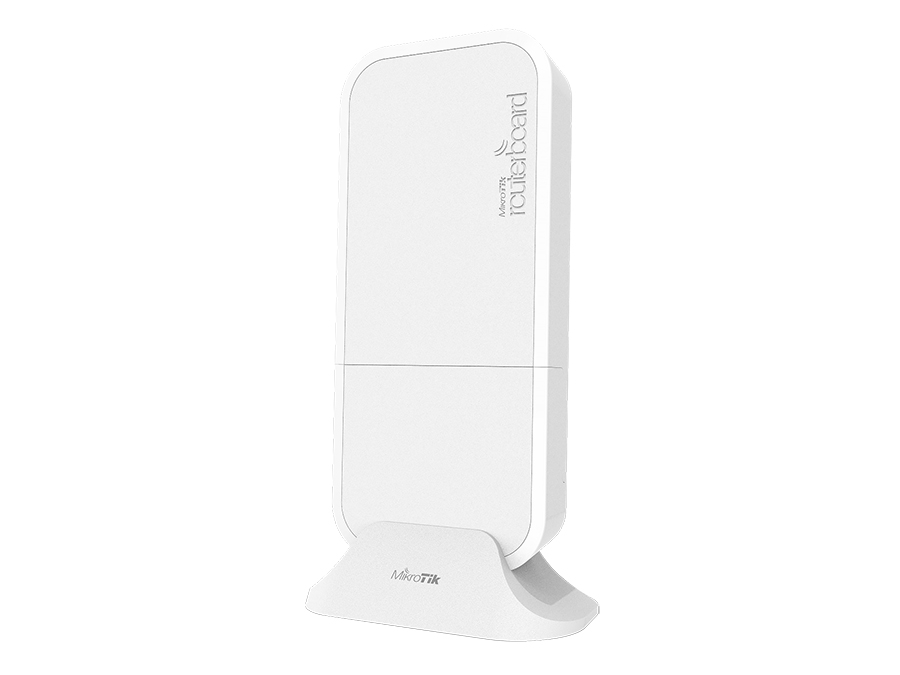

MikroTik’s RB-WAPLTE is a small weatherproof wireless access point with a built-in LTE4 modem that supports 2G, 3G and 4G (LTE) connectivity.
Connect to the wAP’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The RB-WAPLTE also has one 10/100 Ethernet LAN port for your wired devices.
LTE cards are connected to two internal antennas with u.FL connectors, making it possible to unplug the connectors and add your own external LTE antenna for larger coverage.
The RB-WAPLTE has several powering options – 9-30v PoE-in by Ethernet port, DC jack and Automotive connector for the car, bus or train.
It includes LTE modem that supports International LTE bands 1,2,3,7,8,20,28,38 and 40.
Specifications
• Antenna Gain: LTE: 2 – 4.5dBi (with uFL connector) Wireless: 2dBi
• Beam-width: 360°
• Data Rate: LTE: 150Mbps Downlink; 50Mbps Uplink ; Wireless: 2.4GHz 300Mbps
• Ethernet Ports: 1x 10/100
• Hardware Button: Reset
• Max. Power Consumption: 8W
• Mounting: Desktop; Ceiling; Pole & Wall-Mount
• Operating System: RouterOS (Level 4 Licence)
• Operating Temperature: -40°C to +60°C
• PoE Input: 9 – 30V (Passive PoE)
• PoE Output: None
• Power Input: 24V 0.8A Power Supply (Included)
• Serial Interface: None
• SIM Slots: 1 (Mini SIM)
• Supported Voltage Range: 9V-30V
• USB Ports: None
• Dimensions: 185 x 85 x 30 mm
