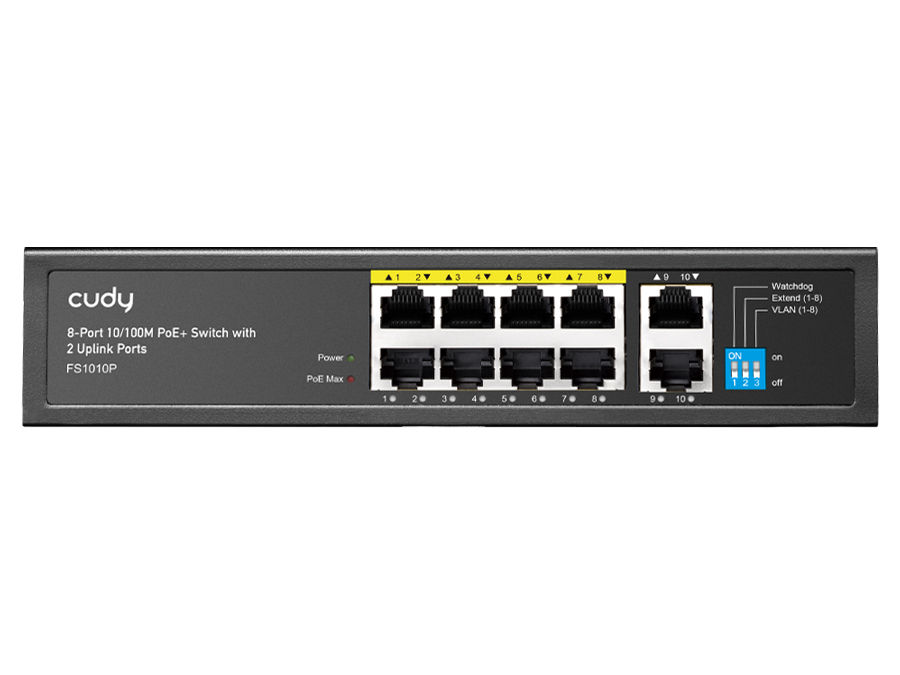

Cudy’s CD-FS1010P is a 10 Port Fast Ethernet switch with 8x 802.3af/at PoE ports and 2x Fast Ethernet Uplink ports. The switch offers a 115W PoE budget, up to 32W per PoE port with a VLAN and Extender toggle switch. VLAN mode enables port isolation on ports 1-8 while Extender mode increases the transmission distance on ports 1-8 to 250m at 10Mbps. The watchdog function continuously monitors PoE connections when in VLAN or Extender Mode. If an error is detected on the device, the switch immediately restarts the port. The unit features a PoE Max LED that blinks at 90% usage and stays solid at 95%.
Specifications
• Supplier Code: FS1010P
• Ethernet Ports: 10x 10/100
• Hardware Button: VLAN ; Extender ; Default
• Max. Power Consumption: 5W
• Mounting: Desktop
• Operating System: None
• Operating Temperature: 0°C to 40°C
• PoE Input: None
• PoE Output: 802.3af/at PoE on Ports 1~8
• Power Input: 1x IEC Power Cord (Included)
• Serial Interface: None
• SFP Ports: None
• Supported Voltage Range: 100-240V
• Dimensions: 220 x 150 x 40mm
• Weight: 800g
