H61 MB,1155,DDR3,MICRO ATX

Description

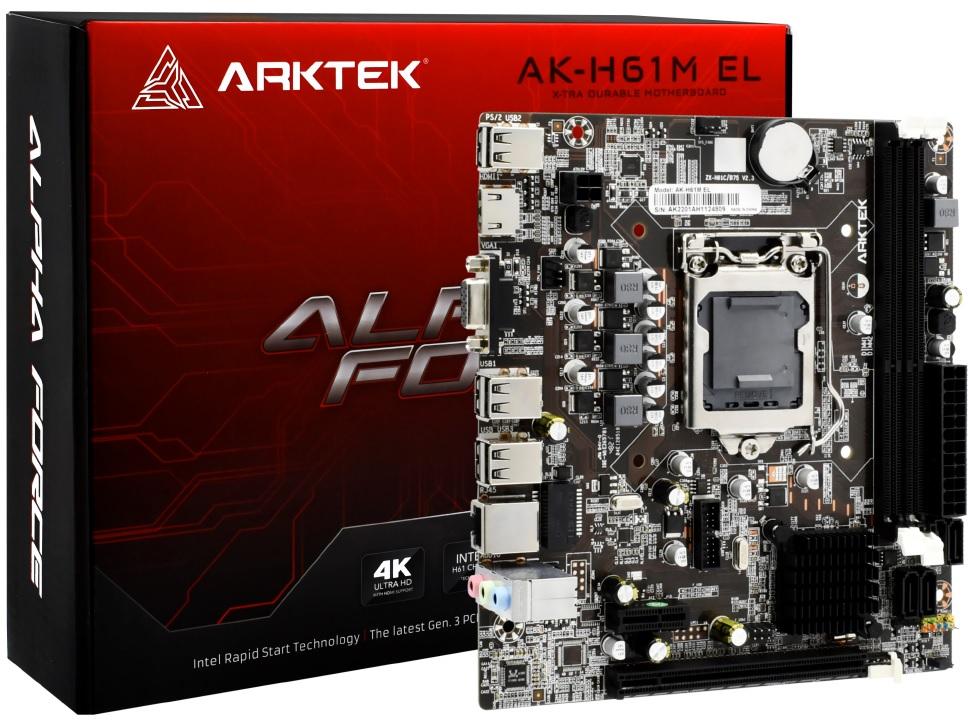

ARKTEK Model: AK-H61M EL

Socket: LGA1155

Chipset: Intel H61

Memory Support: Dual Channel DDR3 H61 MB 1155 MATX – AK-H61M EL

Processor: Intel Socket 1155 for Intel Core i7 /Core i5 /Core i3 /Pentium /Celeron Processors

Chipset: Intel H61 Chipset

On-Board Graphics: Intel Graphics Media Accelerator X4500 HD

Memory: DDR3 1600/ 1333/1066 Memory

DIMM: 2 x Memory Slots

Supports Up To GEN2 Only

LAN: Realtek 8105E/8111E 100/1000 Mbps (Optional)

Audio: Realtek 6 Channel Audio Codec

SATA: 4 x SATA Port

Back Panel I/O Ports: 1 x VGA Port 1 x HDMI Port

6 x USB 2.0 Port

1 x LAN Jack

3 x Audio Jack

On-Board Pinheaders / Connectors

2 x USB 2.0 Pinheader Supports Additional 4 USB 2.0 Ports 1 x Front Panel Audio Pinheader

Form Factor: Micro-ATX (18.5 x 16.8 cm)

Slots: 1 x PCI Express x 16 Slot 1 x PCI E x1 Slot

Mounting: 6 Mounting Holes

Accessories

1 x SATA Cable

1 x I/O Backboard

1 x User Manual

1 x Driver CD
