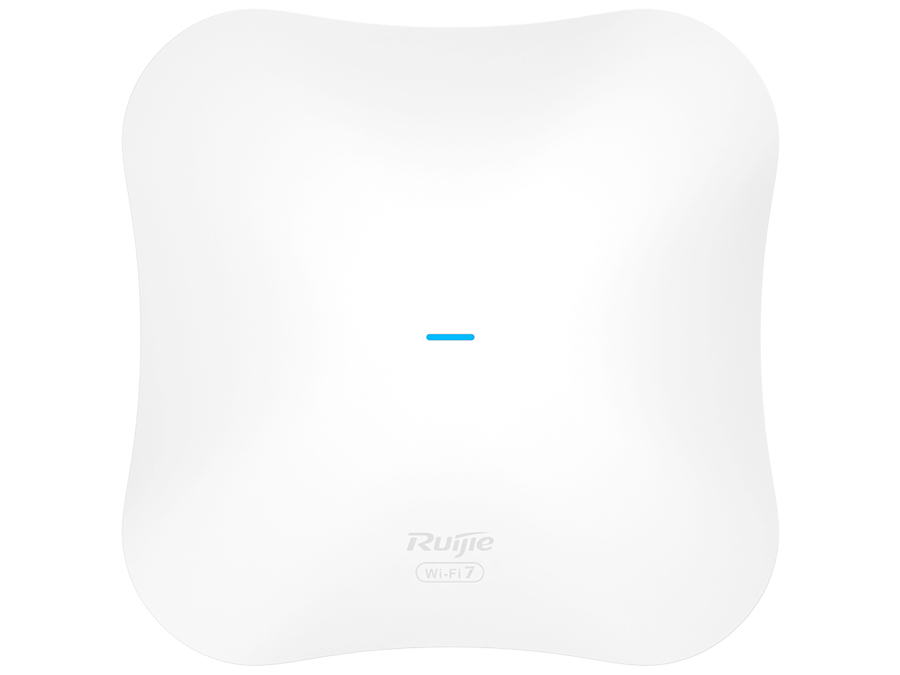

Reyee’s RG-RAP73PRO is a WiFi 7 (802.11be) Tri-band ceiling mount access point featuring 1x 2.5Gbps Ethernet port, 1x 10Gbps SFP+ Port, seamless roaming and speeds of up to 14000Mbps. It supports Ruijie’s smart networking feature, which with Ruijie’s free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.
Note: This device requires an 802.3at/bt PoE injector or 54V 0.55A Power Supply which are not included.
Specifications
• Antenna Gain: 2.4GHz: 3.6dBi; 5.8GHz: 5.9dBi; 6GHz: 5.2dBi
• Beam-width: 360°
• Data Rate: 2.4GHz: 688Mbps; 5.8GHz: 4323Mbps; 6GHZ: 8646Mbps
• Ethernet Ports: 1x 10/100/1000/2500
• Hardware Button: Reset
• Max Power Consumption: 30W
• Mounting: Wall or Ceiling Mount
• Operating System: Reyee
• Operating Temperature: 0°C to 40°C
• PoE Input: 802.3at/bt
• PoE Output: None
• Power Input: 802.3at/bt or 54V 0.55A Power Supply (not included)
• Serial Interface: None
• SIM Slots: None
• Supported Voltage Range: 37-57V (PoE) 54V (DC Input)
• USB Ports: None
• Other: 1x 10Gbps SFP+
• Dimensions: 220 x 220 x 45 mm
• Weight: 1.1kg
