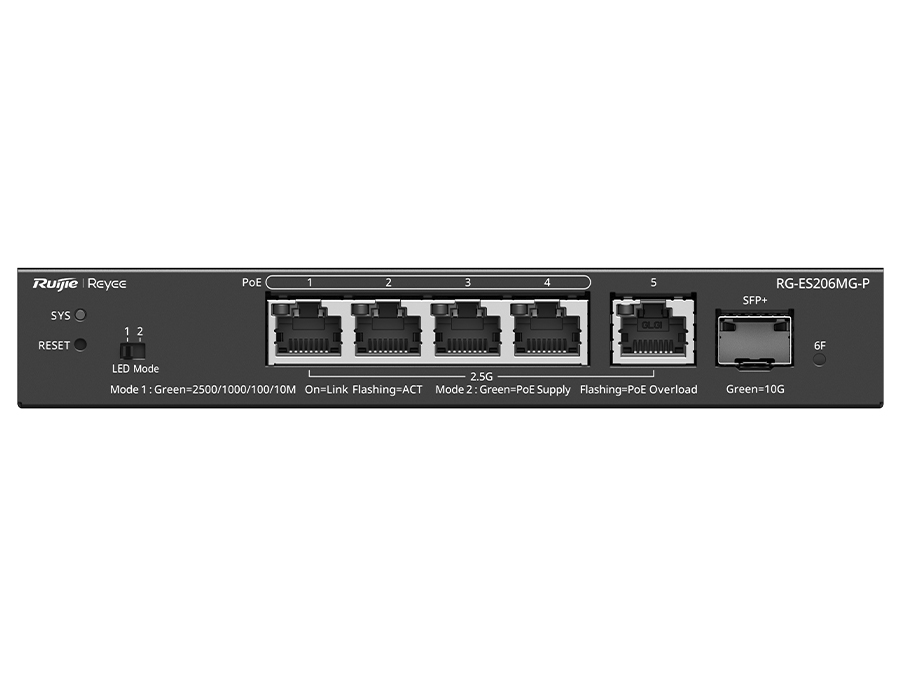

Reyee’s RG-ES206MGP is a 5-port, 2.5Gbps smart managed switch with 4x 802.3af/at PoE ports, 1x 2.5Gbps Ethernet and 1x SFP+ uplink port. The switch offers a 70W PoE budget and up to 30W per PoE port. It supports Ruijie’s smart networking feature, which, with Ruijie’s free cloud service, allows users to auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.
Specifications
• Ethernet Ports: 5x 10/100/1000/2500
• Hardware Button: Reset; LED Mode
• Max. Power Consumption: 5.5W
• Mounting: Desktop
• Operating System: None
• Operating Temperature: 0°C to 40°C
• PoE Input: None
• PoE Output: 802.3af/at on Ports 1 to 4
• Power Input: 54V 1.4A Power Supply (Included)
• Serial Interface: None
• SFP Ports: 1x SFP+
• Supported Voltage Range: 54V DC
• Dimensions: 172 x 90.8 x 28 mm
• Weight: 1.39kg
