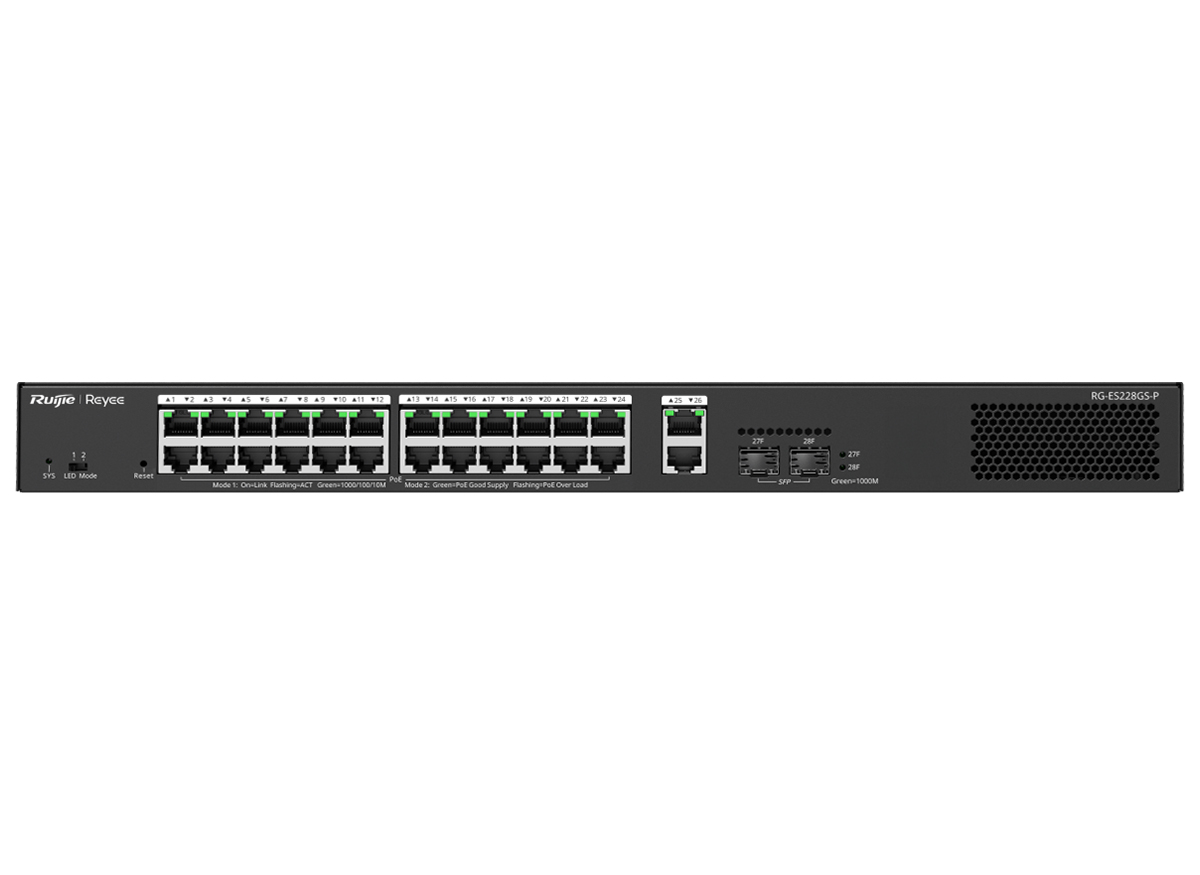

Reyee’s RG-ES228GP is a 26 port Layer 2 managed Gigabit switch with 24x 802.3af/at PoE ports, 2x Gigabit and 2x SFP uplink ports. The switch offers a 370W PoE budget and up to 30W per PoE port. It supports Ruijie’s smart networking feature, which with Ruijie’s free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.
Note: Does not support Passive DAC’s, 1GB copper SFP modules, or SFP GPON modules. It is compatible with our SFP-AOC5.
Specifications
• Ethernet Ports: 26x 10/100/1000
• Hardware Button: None
• Max. Power Consumption: 21W
• Mounting: Desktop or Rack-Mount
• Operating System: None
• Operating Temperature: 0°C to 40°C
• PoE Input: None
• PoE Output: 802.3af/at on Ports 1 to 24
• Power Input: 1x IEC Power Cord (Included)
• Serial Interface: None
• SFP Ports: 2x 1.25Gbps
• Supported Voltage Range: 100 to 240V
• Dimensions: 440 x 214.9 x 44 mm
• Weight: 4kg
