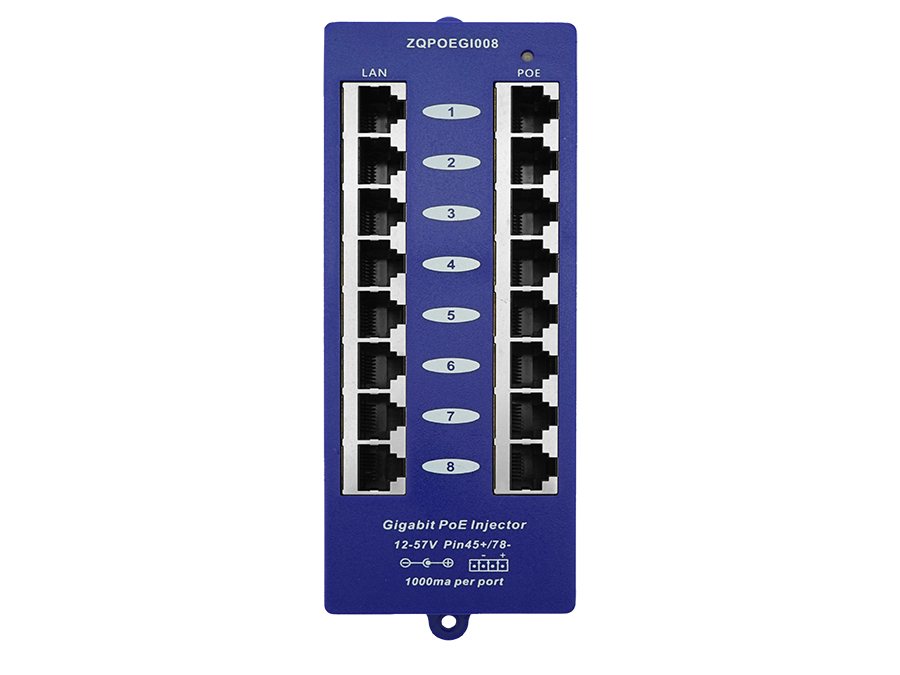

Scoop’s POE-8G is an 8-Port Gigabit Passive PoE Injector with both DC and Terminal Powering options. The unit supports an input voltage of 12-57V and can be wall-mounted.
Note: Power supply sold separately. View our range of power supplies here.
Specifications
• Ethernet Ports: 16x 10/100/1000 (8 Passthrough Pairs)
• Max. Current Per Port: 1000mA
• Operating Temperature: 0°C to 40°C
• PoE Mode: Mode B / Mid-span (4/5+; 7/8-)
• PoE Output: PoE Pass-through (Power output determined by PSU)
• Power Input: 12-57V Power Supply (Not Included)
• Supported Voltage Range: 12-57V
