NETWORK LIGHTNING PROTECTOR

Description

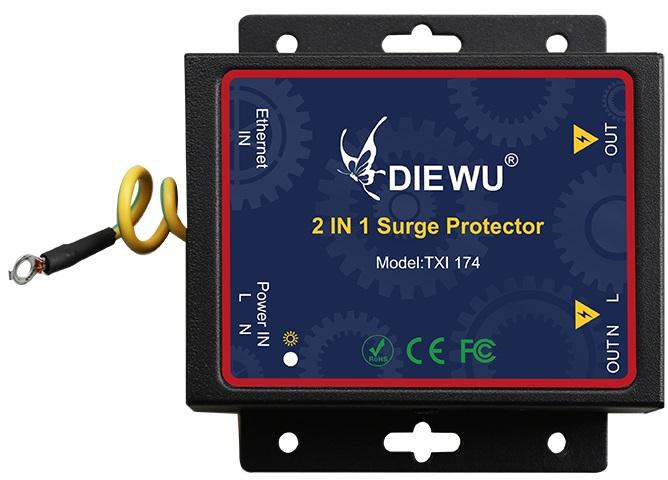

NETWORK LIGHTNING PROTECTOR – TXI174

Product Specification

2 IN 1 Surge Protector

Model Number: TXI 174

Protection Circuit: Network:1/2 3/6 4/5 7/8 Power: L/N

Connector: RJ45 x 2 Power Connector x 2

Insertion Loss: 0.5dB

Ethernet Rate: 1000Mbps

Maximum Discharge Current (Imax): 5KA (10 times),10KA (1 times), (8/20µs)

Working Voltage: AC220V

Dimension: 86 x 84 x 25mm

Environment

Operating Temperature: -40 ?-85 ?

Relative Humidity: 10%-90%(Non-Condensing)

Storage Temperature: -40?-85?

Relative Humidity: 5%-90%(Non-Condensing)
