Description

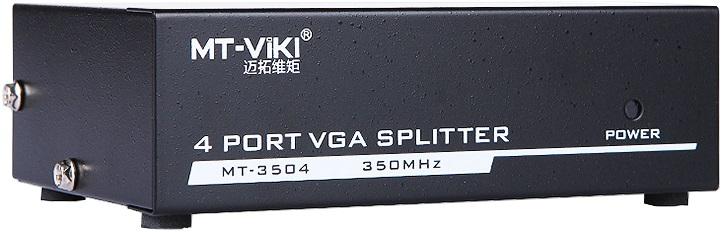

4 WAY VGA SPLTTER 350MHZ- MT-3504
MT-VIKI – 4 WAY VGA SPLTTER
Features:
One Video Input to 4 Video Outputs
Superior Video quality up to 1920 x 1440 @ 60Hz
Supports up to 350MHz Bandwidth for High Performance Video
Long Distance Transmission up to 45m
Supports VGA, SVGA, UXGA, WUXGA, and multisync
Support EDID (Default port 1)
Expandable provides up to 4 Video Displays
Plug and Play no Software Installation required
Video Input:
Interface: 1 x HDB-15 Female (Blue)
Impedance: 75
Max Distance: 1.8 m
Video Output:
Interface: 4 x HDB-15 Female (Blue)
Impedance:75
Video
Max. Bandwidth: 350 MHz
Max. Resolutions: Up to 1920 x 1440
Max Distance: Up to 45 m
EDID Settings: Port 1 / Auto / Default
Power
Connector: 1 x DC Jack
Consumption: DC 5V, 1A
Environment
Operating Temp.: 0-50
Storage Temp.: -20 – 60
Humidity: 0-80% RH, Non-Condensing
Physical Properties
Housing: Metal
Weight: 0.475kg
Dimensions: (L x W x H) 13 x 9 x 4cm
Package Contents:
1x User Manual, 1x Power Adapter
